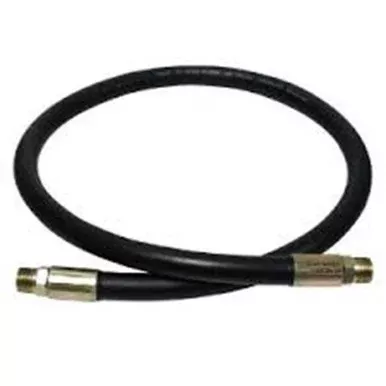

The Apache Hydraulic Hose Assembly 3/8 Inch x 12 Inch Male to Male is designed for reliable high-pressure hydraulic applications. Built to SAE 100R2AT standards, this hose is coiled and sleeved for easy storage and labeled for quick size and specification identification.
Product Details:
- Meets SAE 100R2AT standards
- 3/8 inch inside diameter
- 9.53 mm inside diameter
- 0.75 inch outside diameter
- 19.1 mm outside diameter
- 12 inch length
- Maximum working pressure 4000 PSI
- Minimum bend radius 5.12 inches
- Male pipe thread x male pipe thread fittings
- Temperature range -40 degrees F to 212 degrees F
- SBR CR BR cover material
- NBR tube material
- Reinforced with two steel braids
